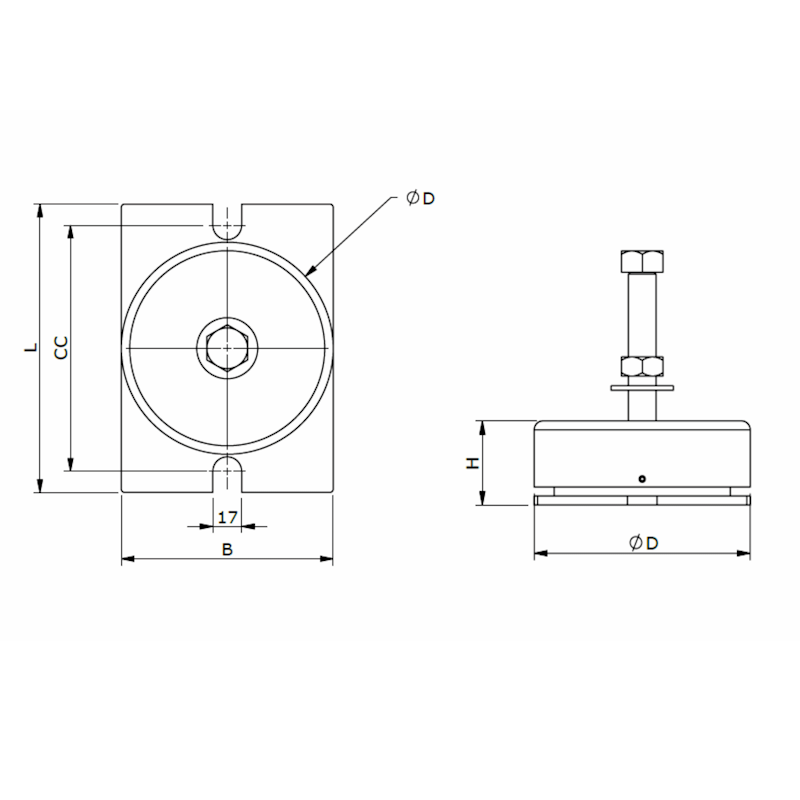

Line Diagram

Description



Dynemech DLC-SF series mounts are simple and effective vibration dampers for machines with respective holes in the base. With additional base plate with holes. These mounts offer both low frequency attenuation and stable machine levelling.


Application



Technical Data

Load Capacity (Kg/pc)
600
Diameter (D) mm
125
Height (H) mm
47
Bolt Size (mm)
M16x2.0x100mm
Adjustment Range (mm)
8
Possible Bolts
M10/12/16/20/24
Coeff. of Friction against Concrete
0.9
Natural Frequency at Max. Load (Hz)
18
